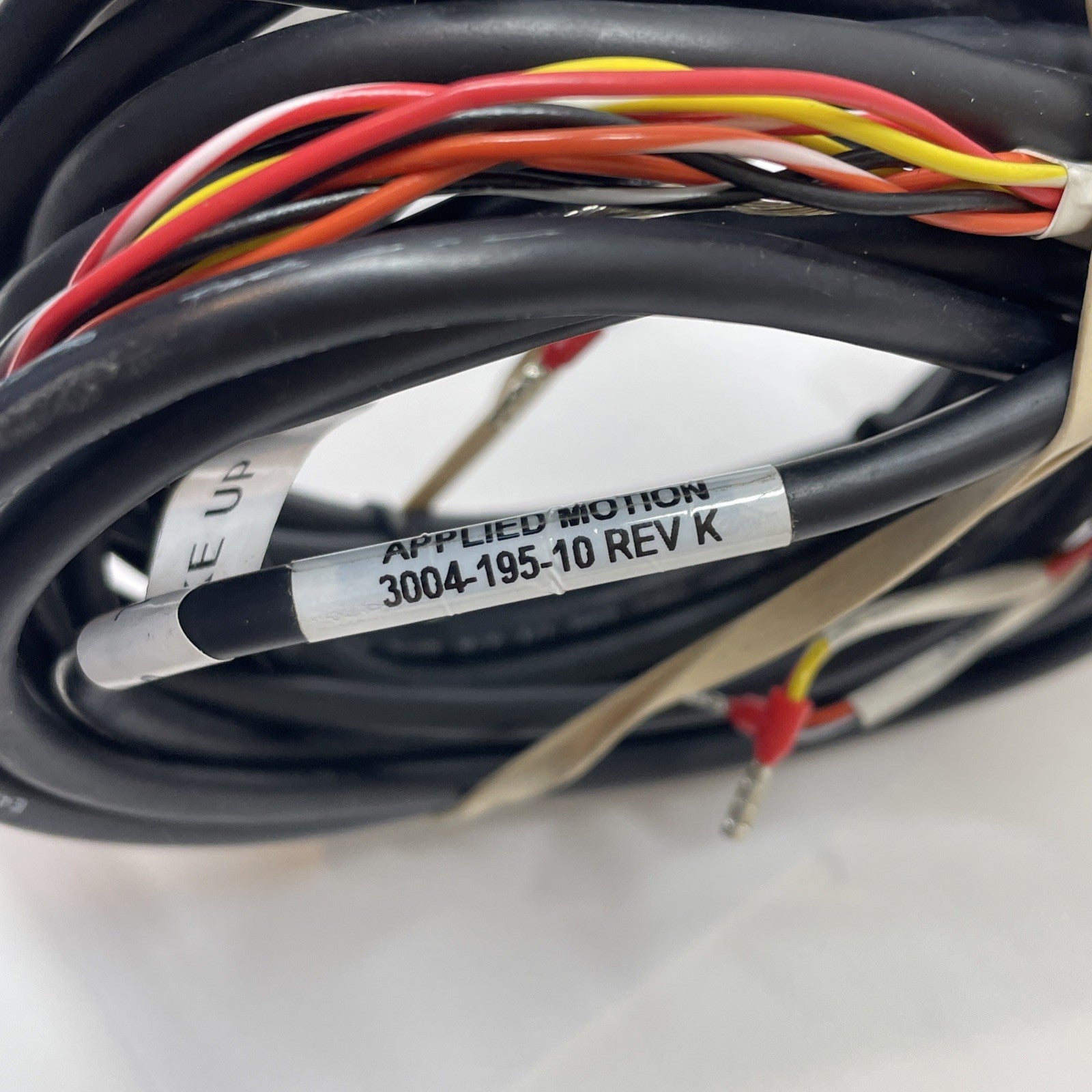

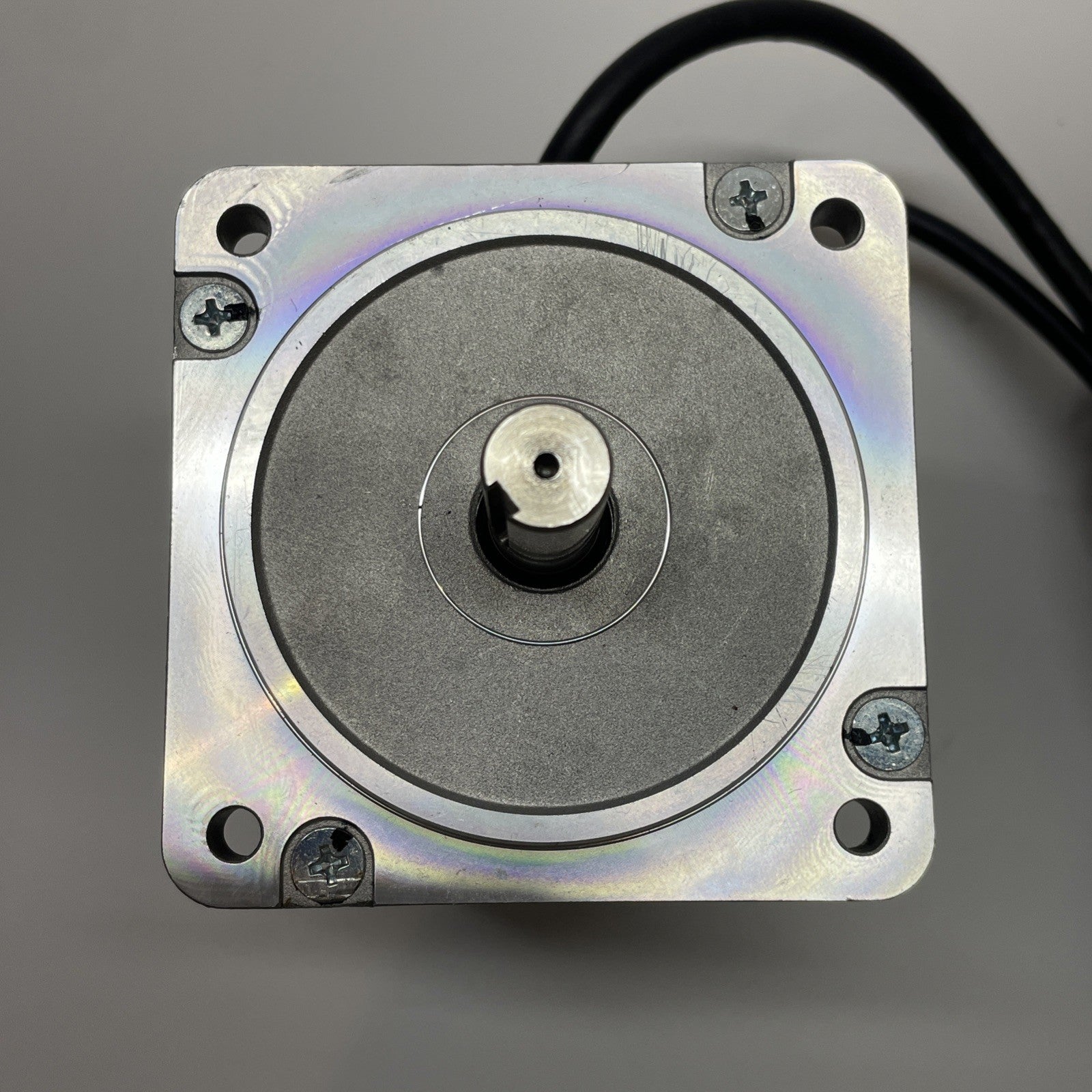

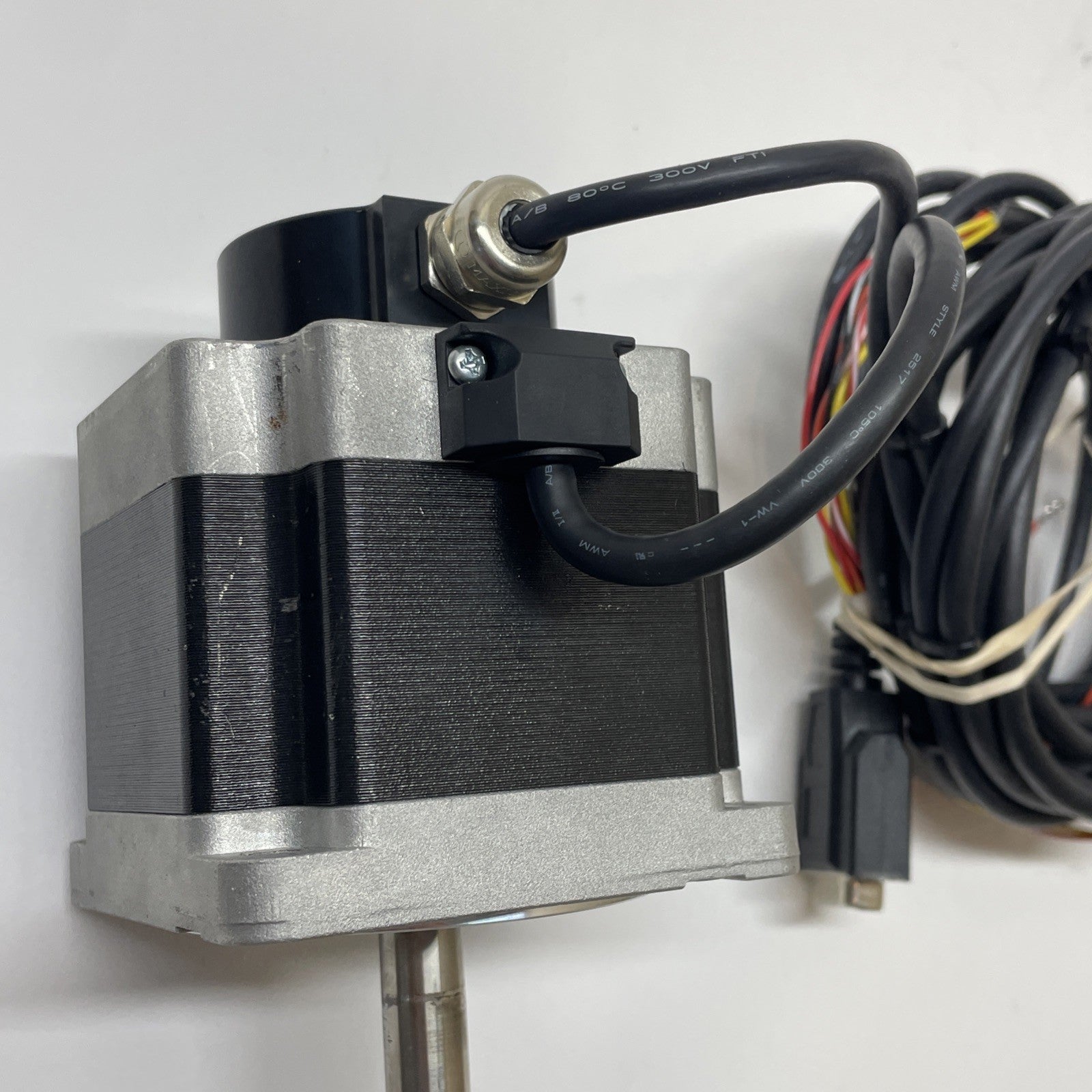

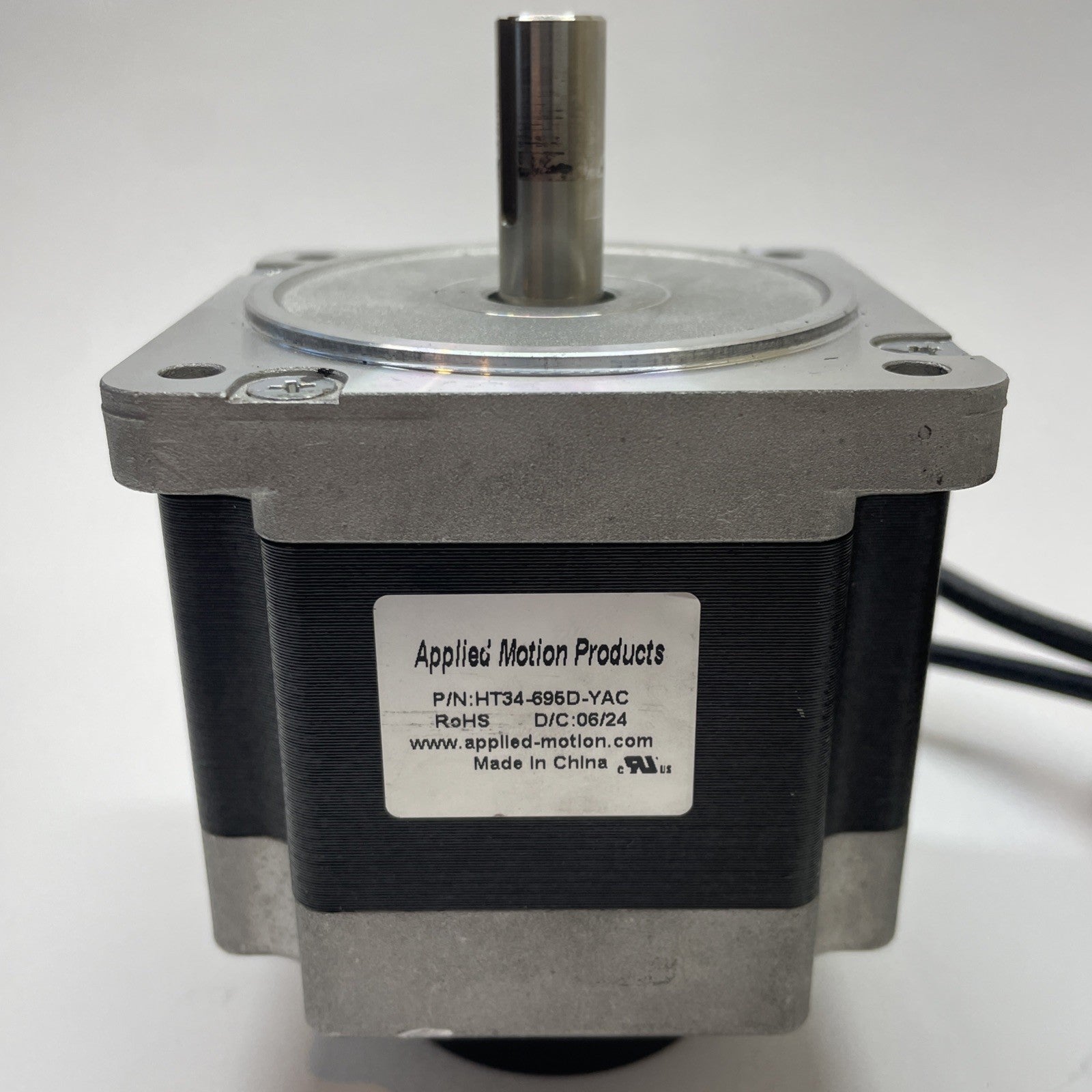

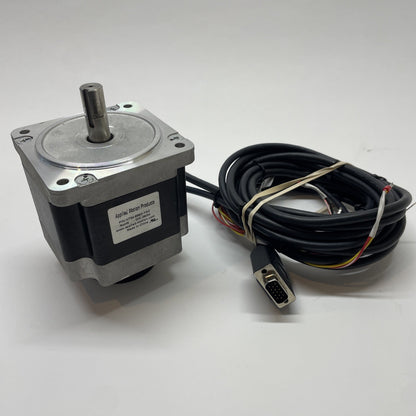

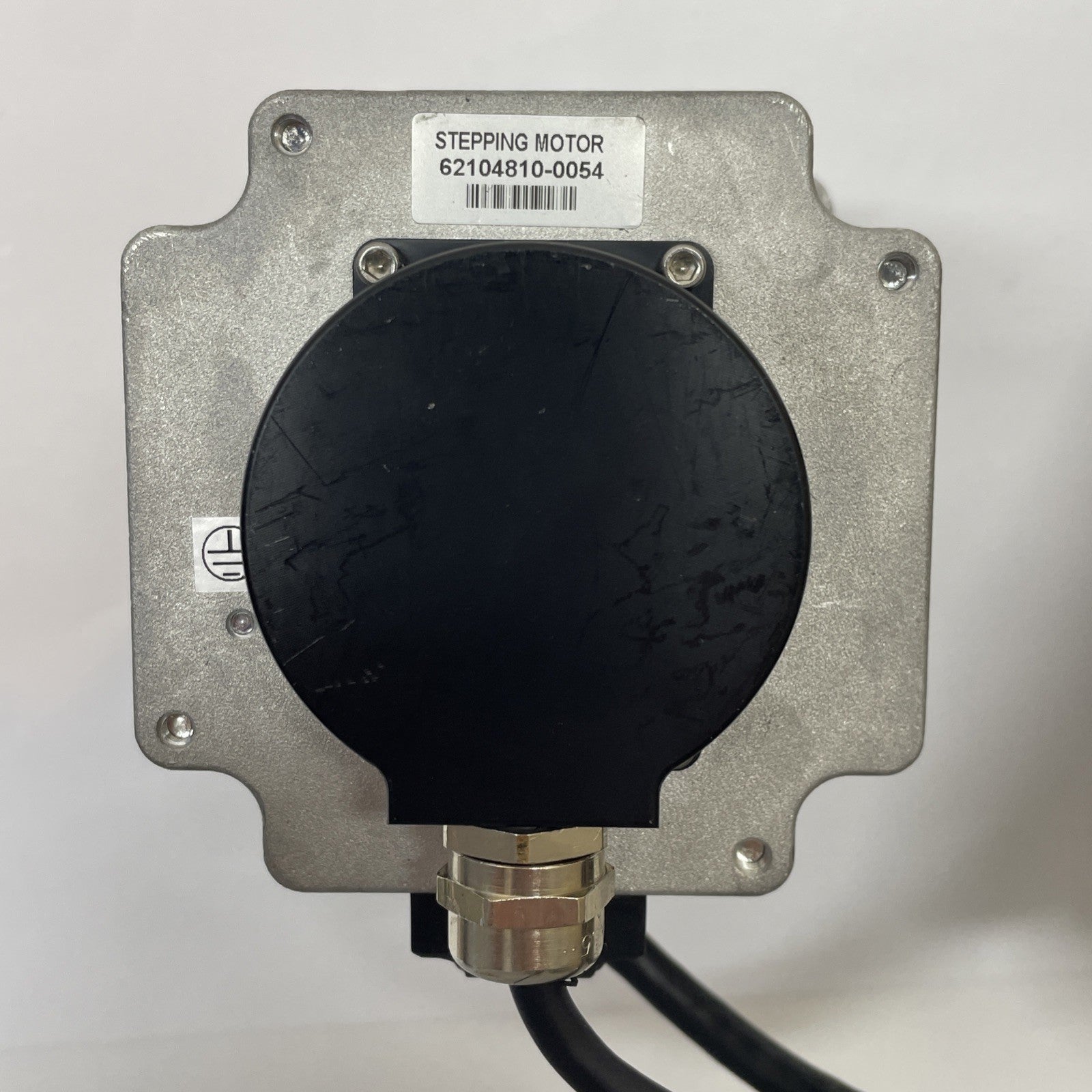

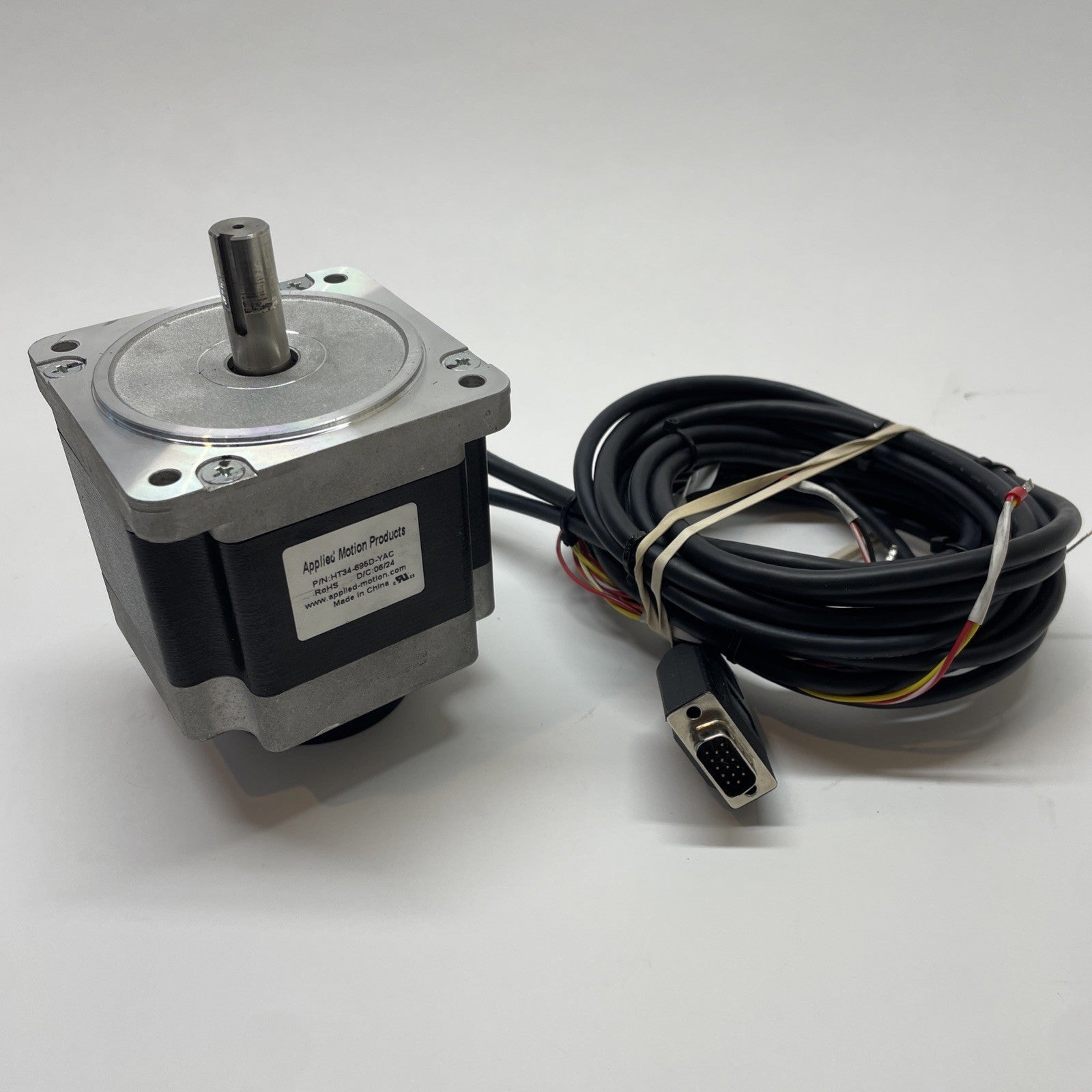

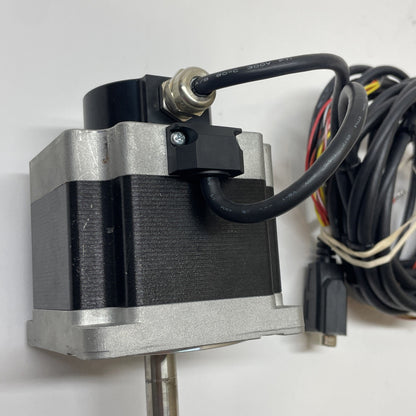

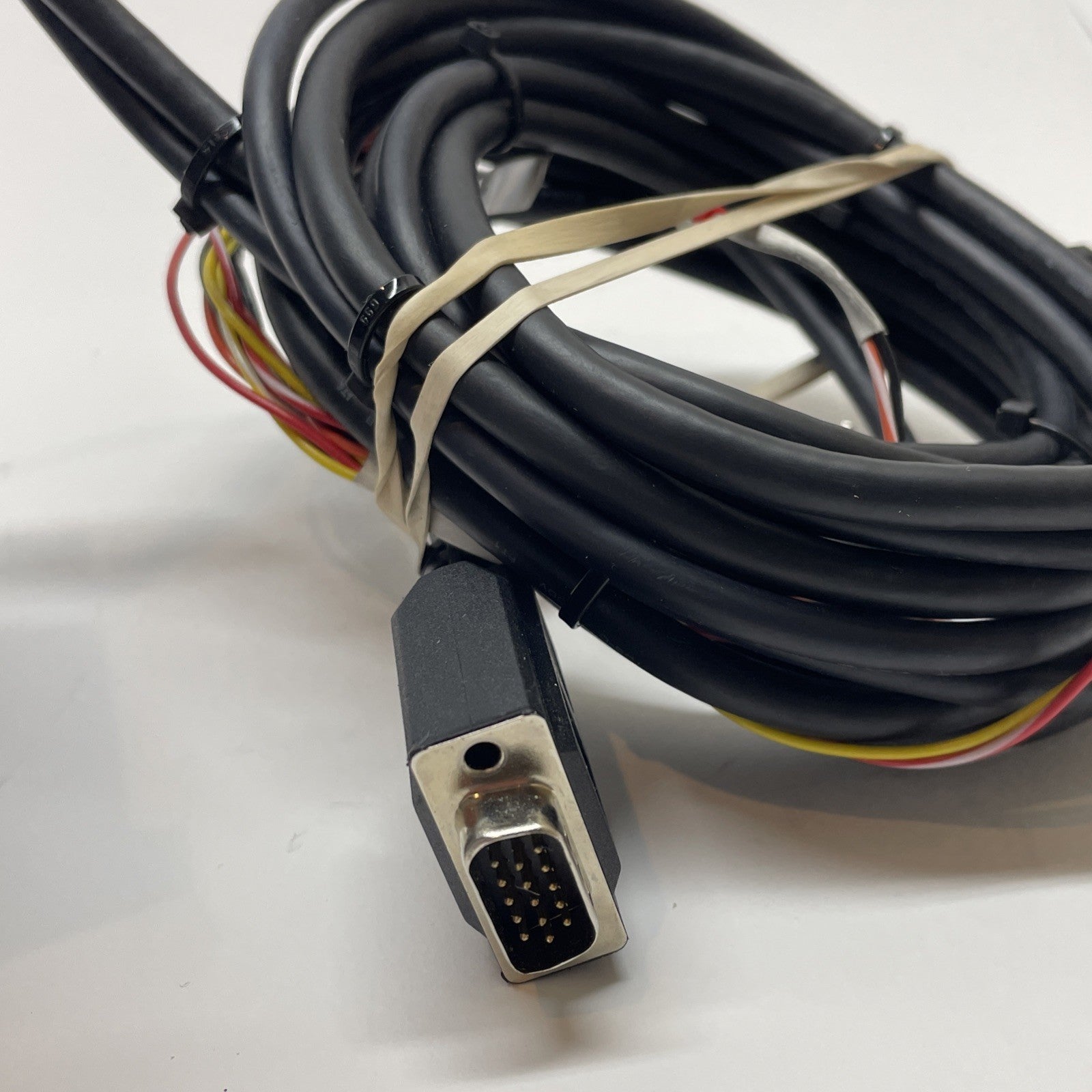

Applied Motion HT34-695D-YAC NEMA 34 Stepper Motor w/ 3004-195-10 Encoder Cable

Applied Motion HT34-695D-YAC NEMA 34 Stepper Motor w/ 3004-195-10 Encoder Cable

Regular price $409.00 USD
Regular price $0.00 USD Sale price $409.00 USD
Sale Sold out
Frame Size
NEMA 34
Motor Type
High torque
Motor Length
3.86 in
Number of Lead Wires
8
Lead Wire Configuration
shielded cable, no connector
Bipolar Holding Torque
821 oz-in
Step Angle
1.8 deg
Bipolar Parallel Current
4.3 A/phase
Bipolar Parallel Resistance
1 Ohms/phase
Bipolar Parallel Inductance
8.6 mH/phase
Rotor Inertia
1.90E-02 oz-in-sec2
Integral Gearhead
No
Weight
5 lbs
Storage Temperature
-40 to 158 °F
Operating Temperature
-04 to 122 °F
Insulation Class
Class B (130 ºC)
Shaft Diameter
0.5 in / 12.7 mm
Bipolar Series Current
2.15 A/phase
Bipolar Series Inductance
34.4 mH/phase
Bipolar Series Resistance
4 Ohms/phase
Category Series
Cabled Step Motors
High Voltage
UL Recognized Stepper Motors

Encoder Resolution
2,000 lines (8,000 counts quadrature)



Handling time is up to 1 business day upon receipt of payment before it ships. Packages are shipped primarily through USPS. UPS Next Day Air is available for express shipping. Please message us regarding handling time to confirm our ability to process your order in the time needed.

In most cases, we can ship multiple purchases in one package if purchased on the same day. If your additional item is large, it could ship in a separate package. We will provide tracking numbers and details upon shipment, if this is the case.

International buyers , shipping will be through eBay's International Shipping Program. Questions related to international delivery times should be directed to eBay.

We offer new and used PLCs, HMIs and other industrial control components. We can also put together entire Control Systems to meet your specifications. Contact us now!

We encourage your questions prior to buying or bidding and we will respond promptly.

Returns: If within 30 days you decide you are not satisfied with your purchase, you may return your item in its original condition and we will refund your purchase price or offer you an exchange. Excellent customer service is our priority! Contact us if you have any issues with your item.

Check out our eBay Store for NEW and USED PLCs, HMIs and other industrial components!
