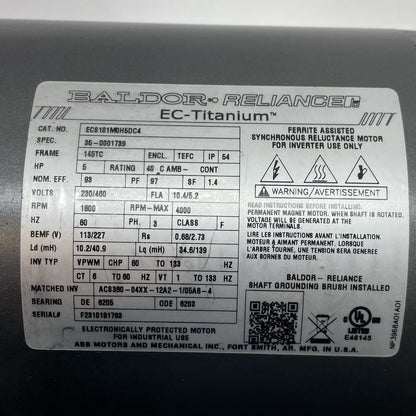

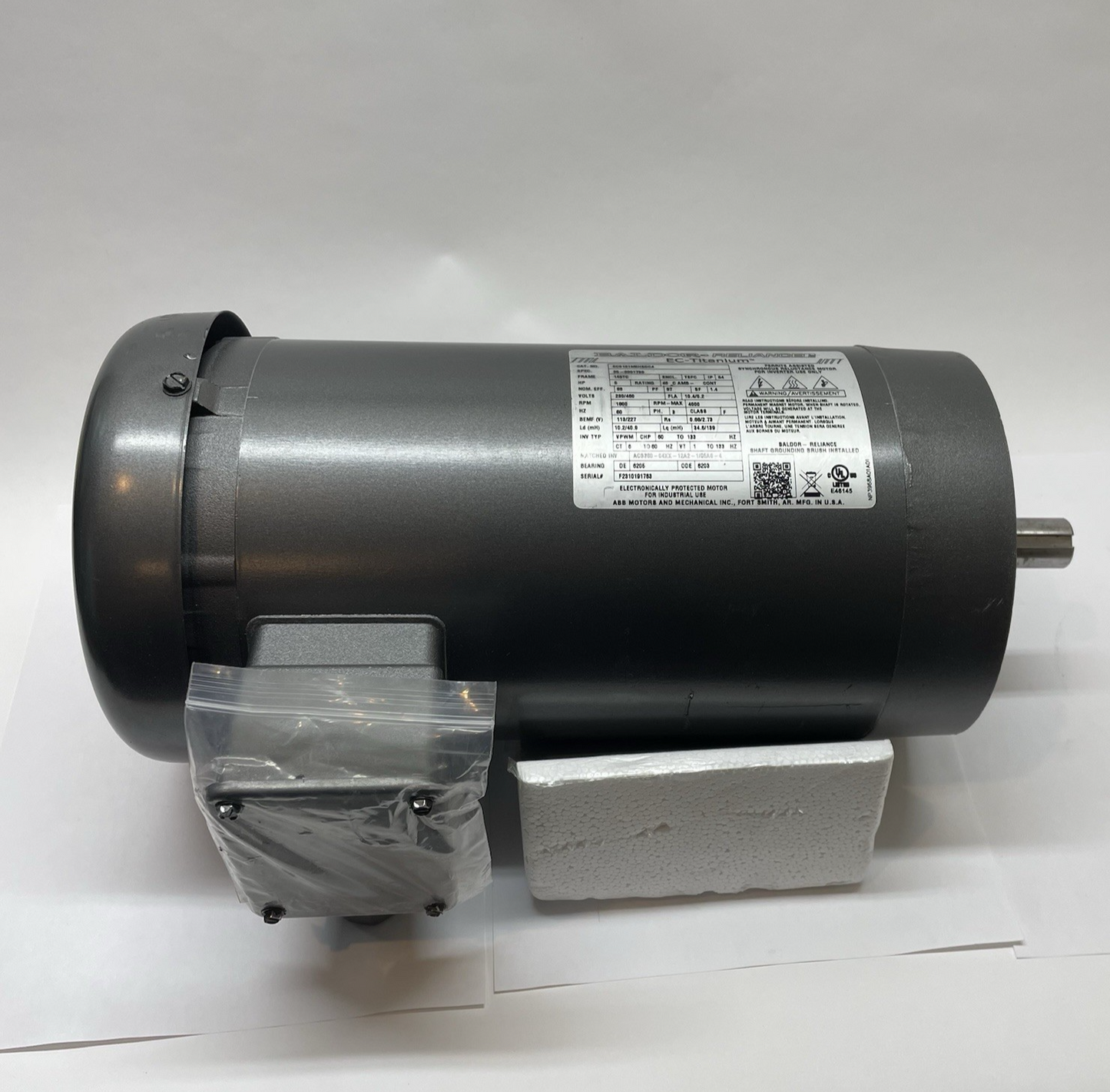

Baldor-Reliance ECS101M0H5DC4 5HP 3-Phase Variable Speed AC Motor

Baldor-Reliance ECS101M0H5DC4 5HP 3-Phase Variable Speed AC Motor

$1,689.00 USD
$0.00 USD $1,689.00 USD
Sale Sold out
Catalog Number ECS101M0H5DC4
Enclosure TEFC
Frame 145TC
Frame Material Steel
Frequency 60.00 Hz
Motor Letter Type Brushless Wound Field PM Rotor
Output @ Frequency 5.000 HP @ 60 HZ
Phase 3
Synchronous Speed @ Frequency 1800 RPM @ 60 HZ
Voltage @ Frequency 230.0 V @ 60 HZ
460.0 V @ 60 HZ
Haz Area Class and Group None
Haz Area Division Not Applicable
Agency Approvals WEEE
CULUS
Ambient Temperature 40 °C
Auxiliary Box NO AUXILLARY BOX
Auxiliary Box Lead Termination None
Base Indicator No Mounting
Bearing Grease Type Polyrex EM (-20F +300F)
Blower None
Constant Torque Speed Range 6
Current @ Voltage 10.400 A @ 230.0 V
5.200 A @ 460.0 V
Design Code -
Drip Cover No Drip Cover
Duty Rating CONT
Efficiency @ 100% Load 93.0 %
Electrically Isolated Bearing Not Electrically Isolated
Feedback Device NO FEEDBACK
High Voltage Full Load Amps 5.2 a
Heater Indicator No Heater
Insulation Class H

Inverter Code 03
IP Rating NONE
KVA Code -
Lifting Lugs No Lifting Lugs
Locked Bearing Indicator Locked Bearing
Motor Lead Termination Flying Leads
Motor Lead Quantity/Wire Size 9 @ 14 AWG
Motor Type 3548B
Mounting Arrangement F1
Number of Poles 4
Overall Length 15.54 IN
Power Factor 97
Product Family General Purpose
Pulley Face Code C-Face
Rodent Screen None
RoHS Status ROHS COMPLIANT
Service Factor 1.40
Shaft Diameter 0.875 IN
Shaft Ground Indicator Shaft Grounding
Shaft Rotation Reversible
Speed 1800 rpm
Speed Code Single Speed
Motor Standards NEMA
Starting Method Direct on line
Thermal Device - Bearing None
Thermal Device - Winding None
Vibration Sensor Indicator No Vibration Sensor
Winding Thermal 1 None
Winding Thermal 2 None
