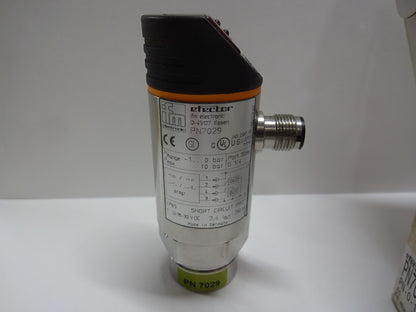

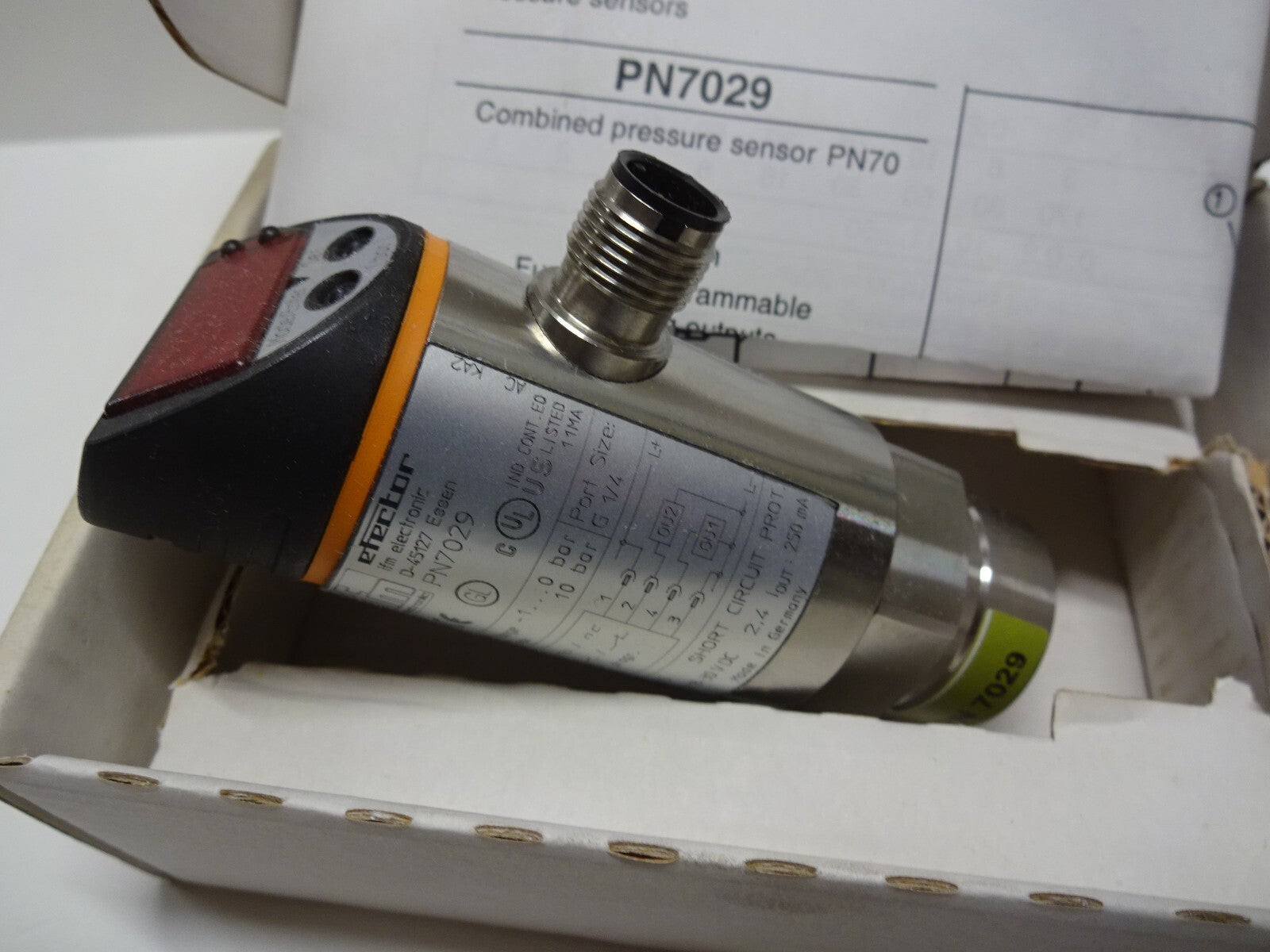

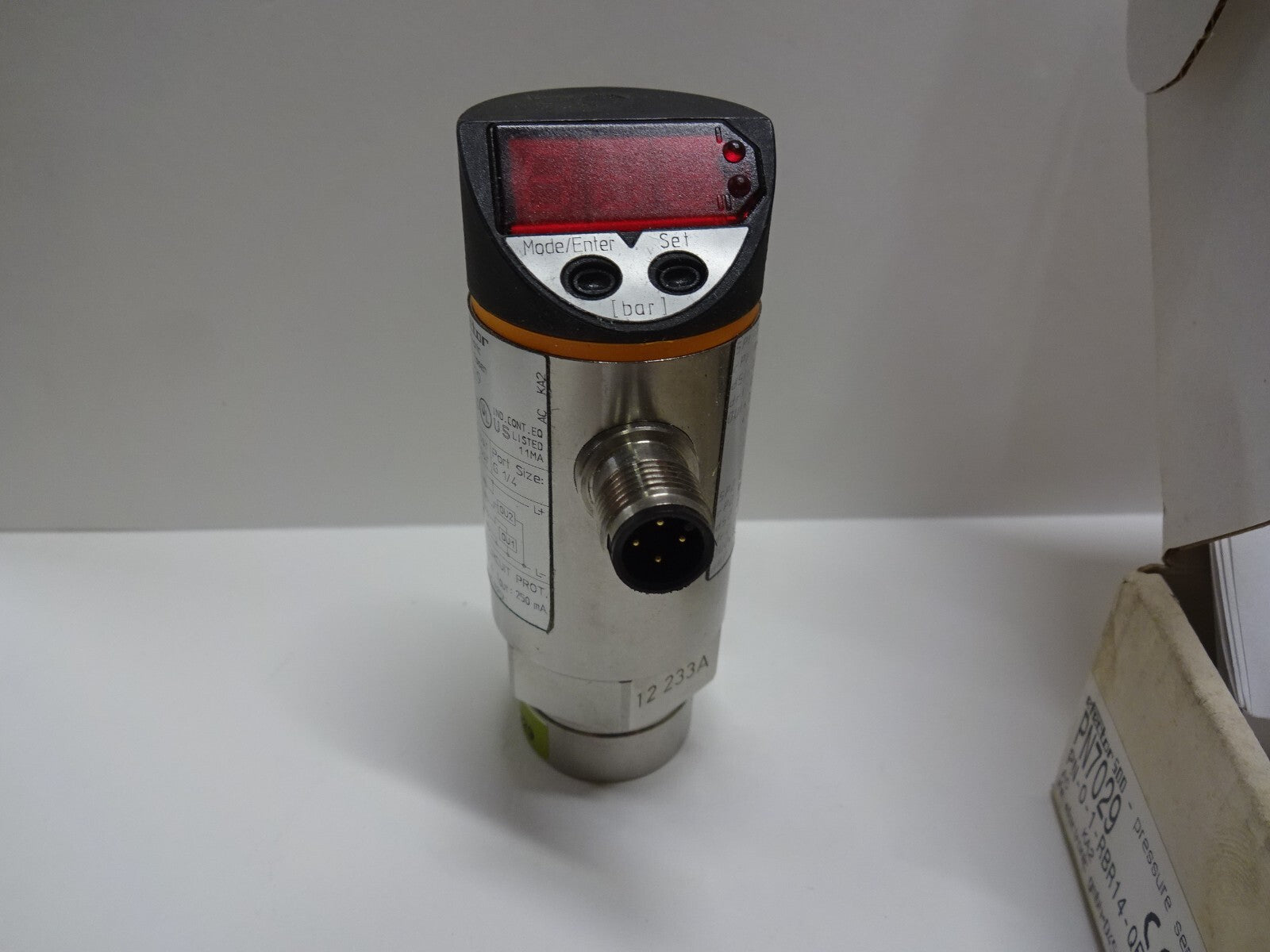

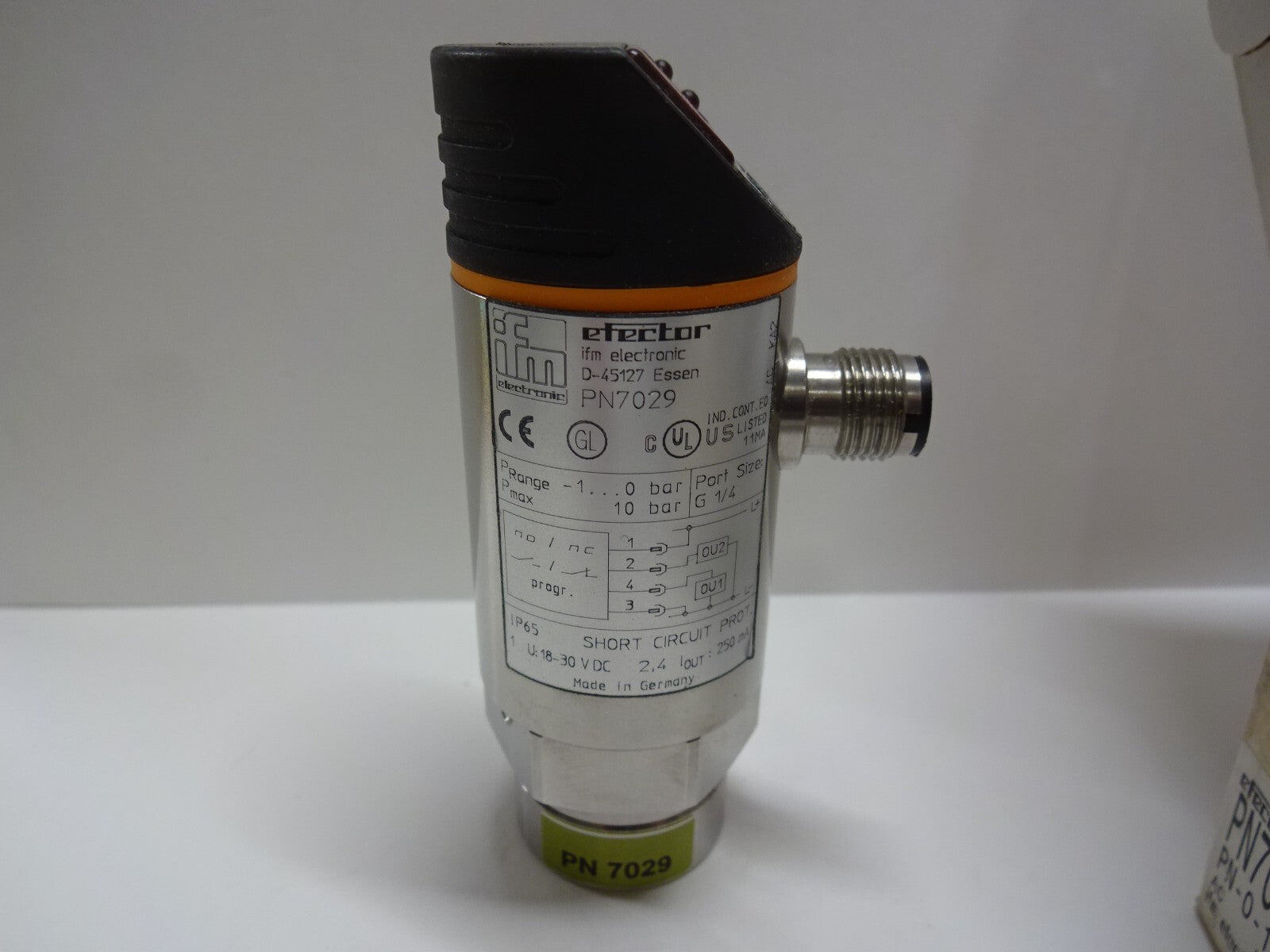

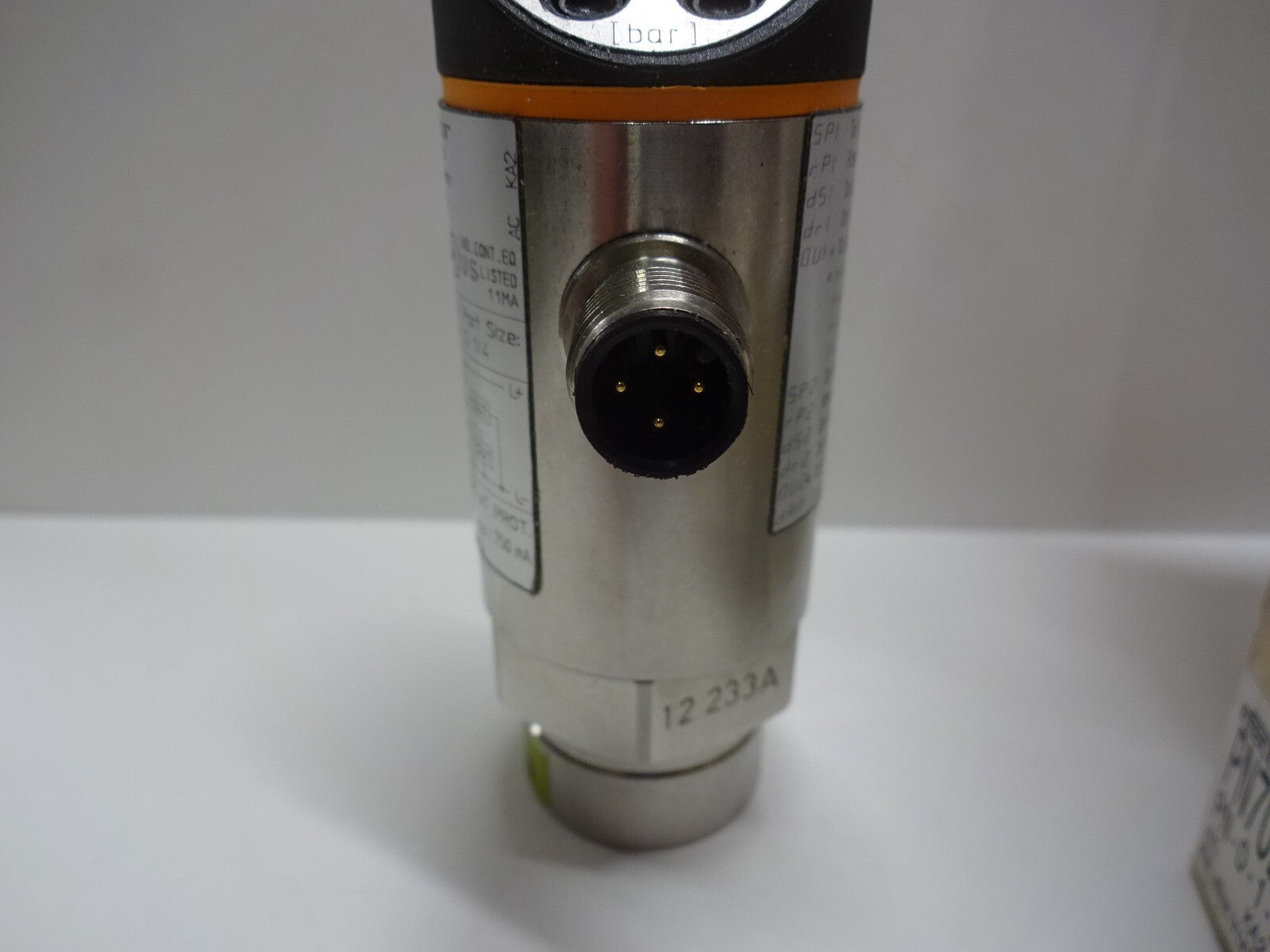

IFM EFECTOR 500 PN7029 / PRESSURE SENSOR SWITCH / PN-0-1-RBR14-QFPKG/US/ /V
IFM EFECTOR 500 PN7029 / PRESSURE SENSOR SWITCH / PN-0-1-RBR14-QFPKG/US/ /V
Product characteristics
| Number of inputs and outputs | Number of digital outputs: 2 |
| Measuring range [bar] | -1...0 |
| Process connection | threaded connection G 1/4 Internal thread |
Application
| System | gold-plated contacts | ||
| Design | Vacuum resistant | ||
| Application | for industrial applications | ||
| Media | liquids and gases | ||
| Medium temperature [°C] | -25...80 | ||
| Min. burst pressure |
|
||
| Pressure rating |
|
||
| Type of pressure | relative pressure |
Electrical data
| Operating voltage [V] | 20...30 DC |
| Current consumption [mA] | < 60 |
| Min. insulation resistance [MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | 0.2 |
| Integrated watchdog | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2 |
Outputs
| Total number of outputs | 2 |
| Output signal | switching signal |
| Electrical design | PNP |
| Number of digital outputs | 2 |
| Output function | normally open / closed; (configurable) |
| Max. voltage drop switching output DC [V] | 2 |
| Permanent current rating of switching output DC [mA] | 250 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
Measuring/setting range
| Measuring range [bar] | -1...0 |
| Set point SP [bar] | -0.98...0.03 |
| Reset point rP [bar] | -0.99...0.04 |
| In steps of [bar] | 0.01 |
Accuracy / deviations
| Switch point accuracy [% of the final value] | < ± 1,5 |
| Repeatability [% of the final value] | < ± 0,25; (with temperature fluctuations < 10 K) |
| Characteristics deviation [% of the final value] | < ± 1,0 |
| Temperature drift per 10 K | < ± 0.3 |
Reaction times
| Switching frequency for a given set response time of one output |
|
||||||||||||||||||||||
| Response time [ms] | at rectangular pressure characteristic; Set point (SPx) = 70 %; Reset point (rPx) = 30 % | ||||||||||||||||||||||
| Delay time programmable dS, dr [s] | 0, 0,2,...10, 11,...50 |
Software / programming

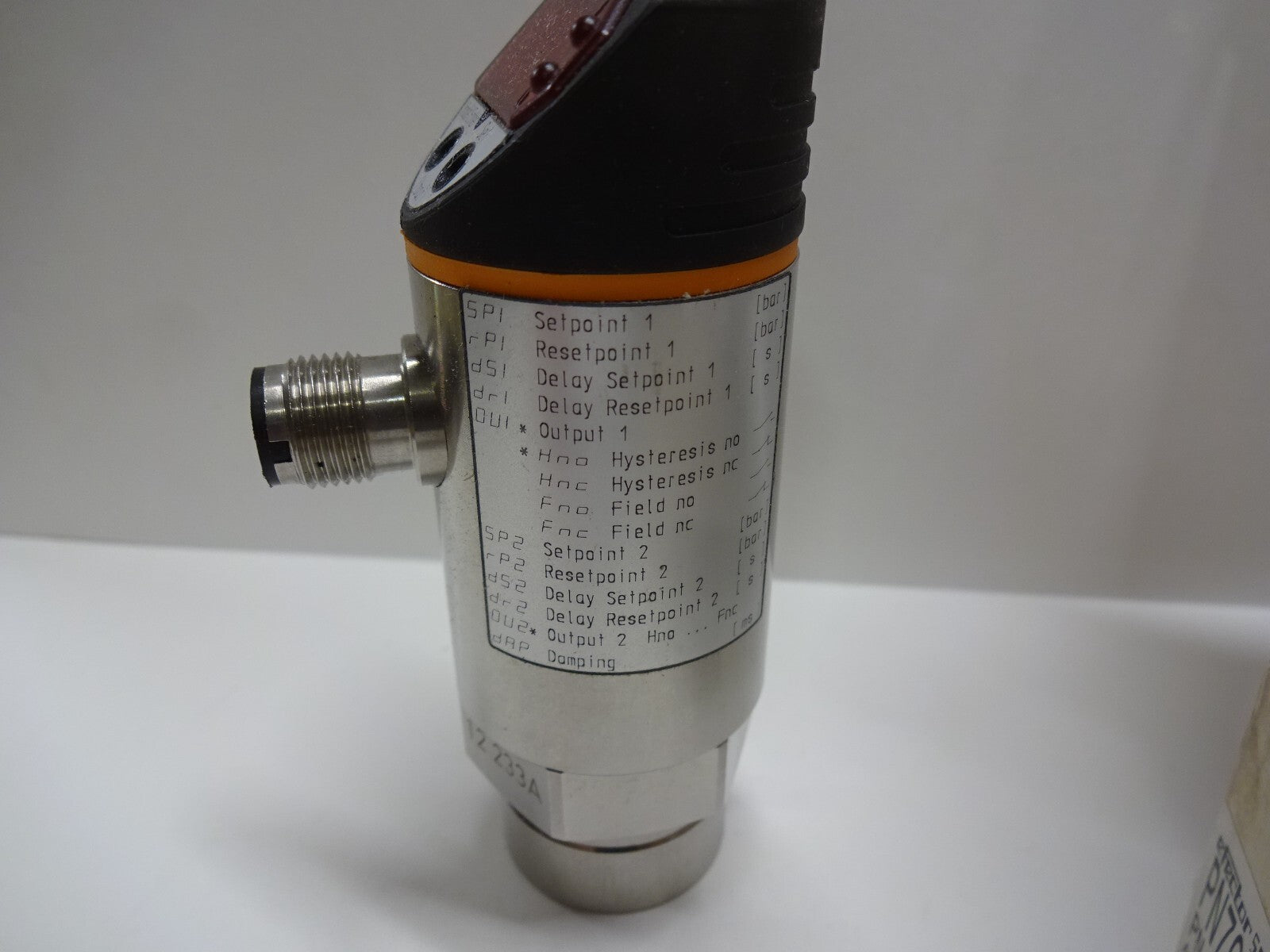

| Adjustment of the switch point | Programming button |
| Parameter setting options | hysteresis / window; normally open / closed; switch-on/switch-off delay; Damping |
Operating conditions
| Ambient temperature [°C] | -25...80 |
| Storage temperature [°C] | -40...100 |
| Protection | IP 65 |
Tests / approvals
| EMC |
|
||||||||
| Shock resistance |
|
||||||||
| Vibration resistance |
|
Mechanical data
| Housing | tubular |
| Dimensions [mm] | Ø 34 / L = 91.5 |
| Material | EPDM/X; FKM; PA; PBT; PC; PTFE; stainless steel (1.4301 / 304) |
| Materials (wetted parts) | stainless steel (1.4305 / 303); ceramics; FKM |
| Min. pressure cycles | 100 million |
| Process connection | threaded connection G 1/4 Internal thread |

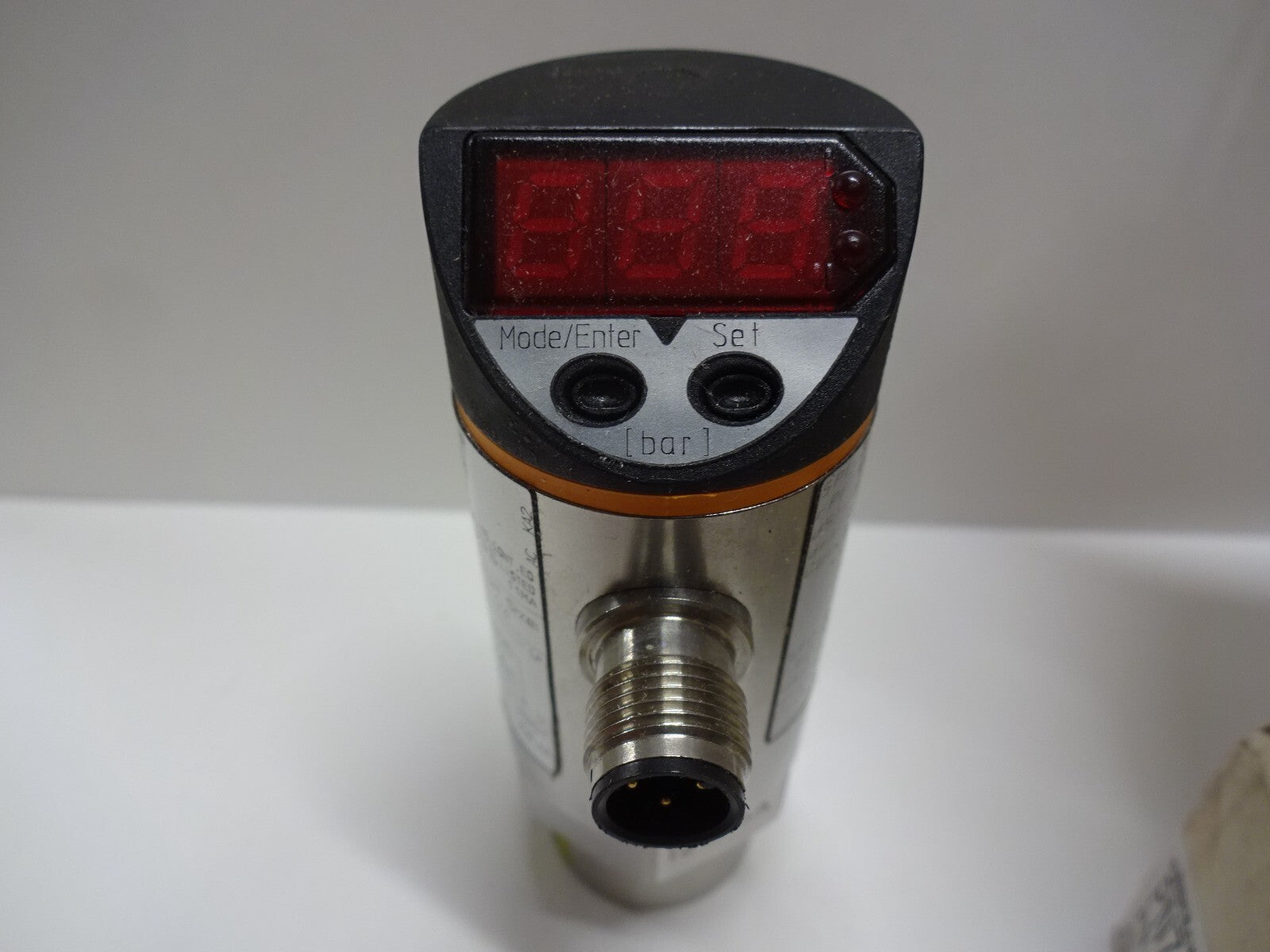

Displays / operating elements
| Display |
|
Remarks
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
